STM Rage 8 RZR XP1000/General 1000/General XP 1000/RZR S 1000 Primary

MUST BE USED WITH A STM TUNER DRIVEN FOR BEST RESULTS! CHECK OUT THE VIDEO BELOW.

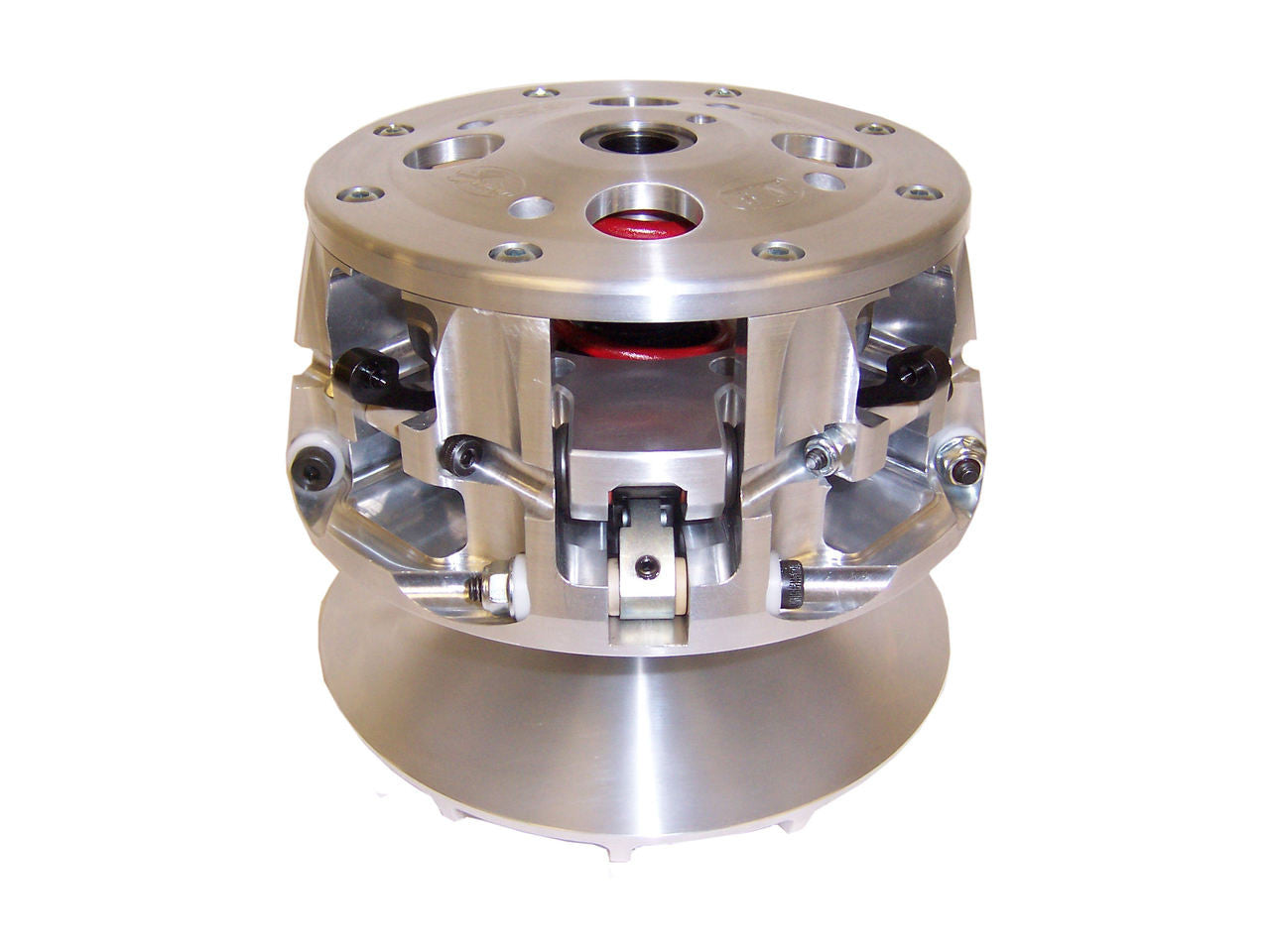

POLARIS RAGE DUAL STAGE BILLET PRIMARY

New improved two-way bearing design. The main shaft bearing is now smaller with a 47mm outside diameter allowing a lower initial take off ratio than our past design. Allows tighter belt deflection, transmission shifting and belt chirp.

A complete billet design that uses a screw-on style spider. Rigid reinforced design for higher horsepower applications. We have designed the Rage to create more overdrive than the stock clutch system. To obtain the proper overdrive the tuner driven clutch # 299PATVD must be used. These STM clutches will fit under the stock cover with no interference. The Rage is capable of using most cam arms that are available on the market. We have incorporated a pin size option for every clutch we make by providing a pin conversion design in the movable sheave. Pin conversions are available in 1/4"and 5/16" diameter. We incorporate a fixed pin design that pivots the cam arm between two bushings and attaches the cam arm to the pin providing more durability to the cam arm pivot points.

The cover is designed to use Polaris ATV springs providing a wide variety of spring rates to choose from.

The Rage is calibrated with a spring and set of our own adjustable SUPERTIP CAM ARMS. Each clutch is assembled and set up to run the Polaris OEM belt (stock belt for each machine). Uses the stock primary bolt.

WE HAVE A TESTED SET UP FOR YOUR TURBO CHARGED RAZOR THAT FLAT OUT PULLS!
